MIDI SERIES

Unit TRY 60 TRY 75
Production Capacity m³/hour 60 75
MIXER
Mixer Type - Single / Planet Single / Planet
Mixer Volume liter 1500/1000 2250/1500
Mixer Capacity 1,00 1,50
Mixer Motor KW 37/45 2x30
Lubrication System - Automatic Automatic
AGGREGATE BUNKER
Number of Bins each 2 - 8 2 - 8
Bin Capacity 20-30 20-30
WEIGHING CAPACITY
Aggregate kg 4.000 4.000
Water lt 300 450
Cement kg 600 900
Additive lt 15 20
Weighing System - Electronic - Digital Electronic - Digital
AGGREAGATE INTERMEDIATE BIN - Yes Yes
TRANSFER CONVEYOR
Conveyor Type - Flat / Chevron Flat / Chevron
Conveyor Length mt 24 - 30 24 - 30
Conveyor Width mm 800 800
Conveyor Covarage - Standard Standard
AGGREGATE SKIP
Volumetric Capacity lt 1700 2500
Electric Motor KW/HP 7.5 11
CEMENT SILO
Number of Silo each 1-4 1-4
Silo Capacity ton 50 - 200 50 - 200
Silo Filter each 1 - 4 1 - 4
Filter Capacity 24 24
COMPRESSOR KW/HP 4/5 7.5/10
WATER CONNECTION Ø 2" 2"
HUMMIDITY PROB - Optional Optional
COVARAGE
Bunker Optional Optional
Main Chassis Optional Optional
Total Power KW Change depending on plant technical executions.

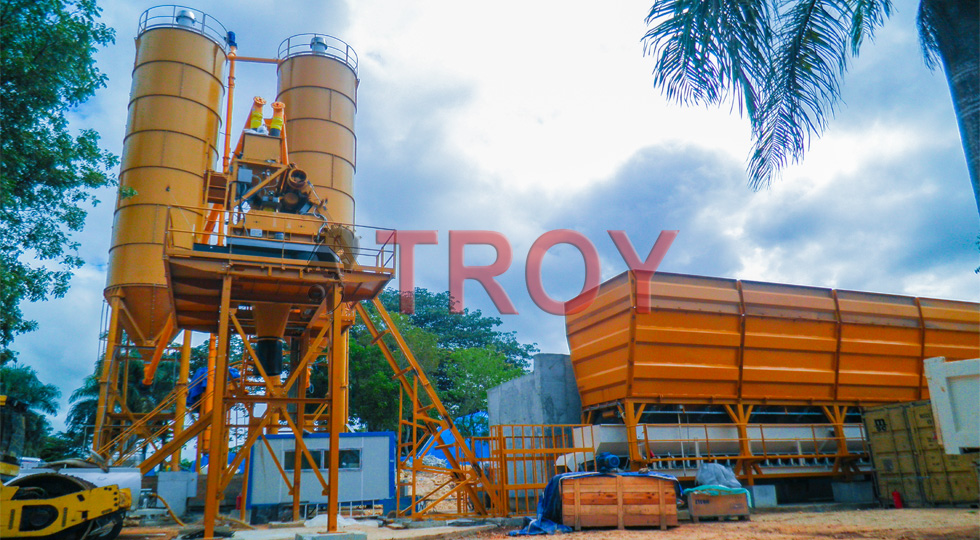

  • Batching plants 60 and 75 m³/h capacity.
  • Single Shaft / Planet mixer alternatives.
  • Aggregate bunker between 2-8 bins.
  • Aggregate bunker capacity between 20m³-30m³.
  • 2 aggregate weigher can be used for each aggregate bins. (Optional)
  • 4 screwed or welded cement / fly ash silo from 50 - 200 tons of capacity.
  • Electronic, high sensitive Aggregate / Cement / Water / Additive weighers.
  • Full automatic control system with PLC and PC.
  • Hummidity prob in mixer or sand bin. (Optional)
