| Unit | TRY 15 | TRY 20 | TRY 30 | |
|---|---|---|---|---|
| Production Capacity | m³/hour | 15 | 20 | 30 |

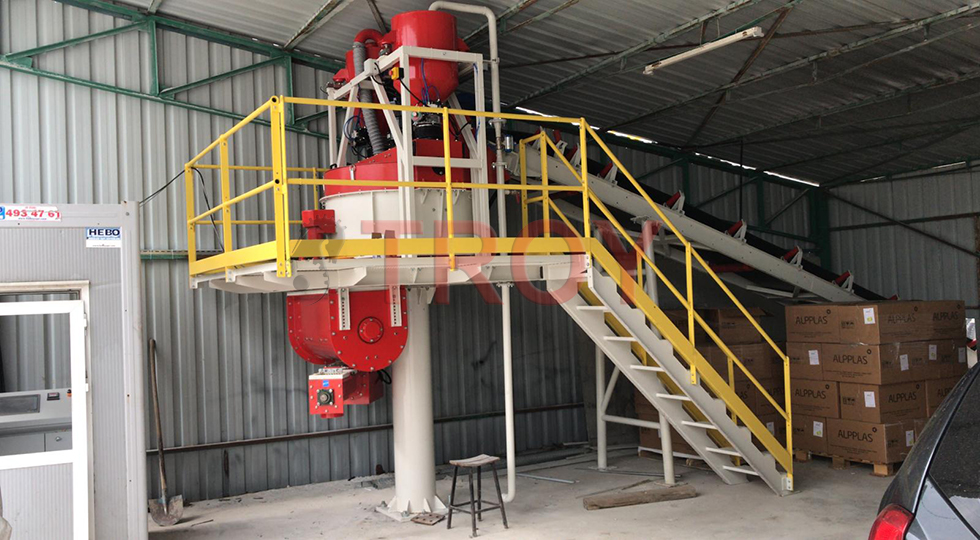

| MIXER | ||||
| Mixer Type | - | Planet | Planet | Single / Planet |
| Mixer Volume | liter | 375/250 | 565/375 | 750/500 |
| Mixer Capacity | m³ | 0,25 | 0,38 | 0,50 |
| Mixer Motor | KW | 7.5 | 11 | 18.5 |
| Lubrication System | - | Automatic | Automatic | Automatic |
| AGGREGATE BUNKER | Number of Bins | each | 2 - 8 | 2 - 8 | 2 - 8 |
| Bin Capacity | m³ | 2,5 - 10 | 2,5 - 10 | 2,5 - 10 |
| WEIGHING CAPACITY | ||||
| Aggregate | kg | 1.000 | 1.000 | 2.000 |
| Water | lt | 50 | 50 | 100 |
| Cement | kg | 125 | 150 | 250 |
| Additive | lt | 10 | 15 | 20 |
| Weighing System | - | Electronic - Digital | Electronic - Digital | Electronic - Digital |
| AGGREAGATE INTERMEDIATE BIN | - | - | - | - |

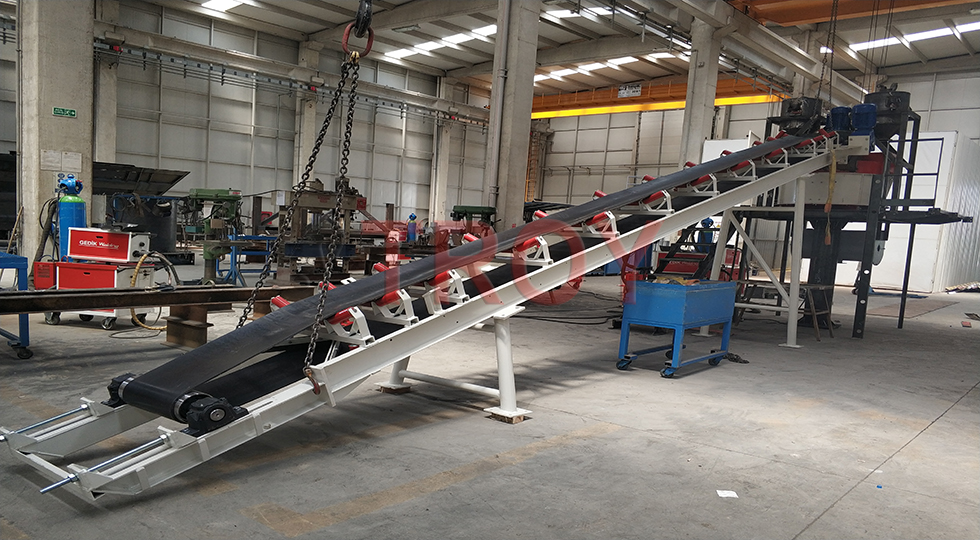

| TRANSFER CONVEYOR | ||||
| Conveyor Type | - | Flat / Chevron | Flat / Chevron | Flat / Chevron |
| Conveyor Length | mt | 8 - 14 | 8 - 14 | 8 - 14 |
| Conveyor Width | mm | 400 - 600 | 400 - 600 | 600 - 800 |
| Conveyor Covarage | - | - | - | - |
| AGREGATE SKIP | ||||
| Volumetric Capacity | lt | 425 | 625 | 825 |
| Electric Motor | KW/HP | 2 | 3 | 5.5 |
| CEMENT SILO | ||||
| Number of Silo | each | 1-2 | 1-2 | 1-2 |
| Silo Capacity | ton | 10 - 30 | 10 - 30 | 10 - 30 |
| Silo Filter | each | 1 - 2 | 1 - 2 | 1 - 2 |
| Filter Capacity | m² | 10 | 10 | 10 |
| COMPRESSOR | KW / HP | Optional | Optional | Optional |
| WATER CONNECTION | Ø | 1" | 1" | 2" |
| HUMMIDITY PROB | - | Optional | Optional | Optional |
| COVARAGE | ||||
| Bunker | Optional | Optional | Optional | |
| Main Chassis | Optional | Optional | Optional | |
| Total Power | KW | Change depending on plant technical executions. | ||
